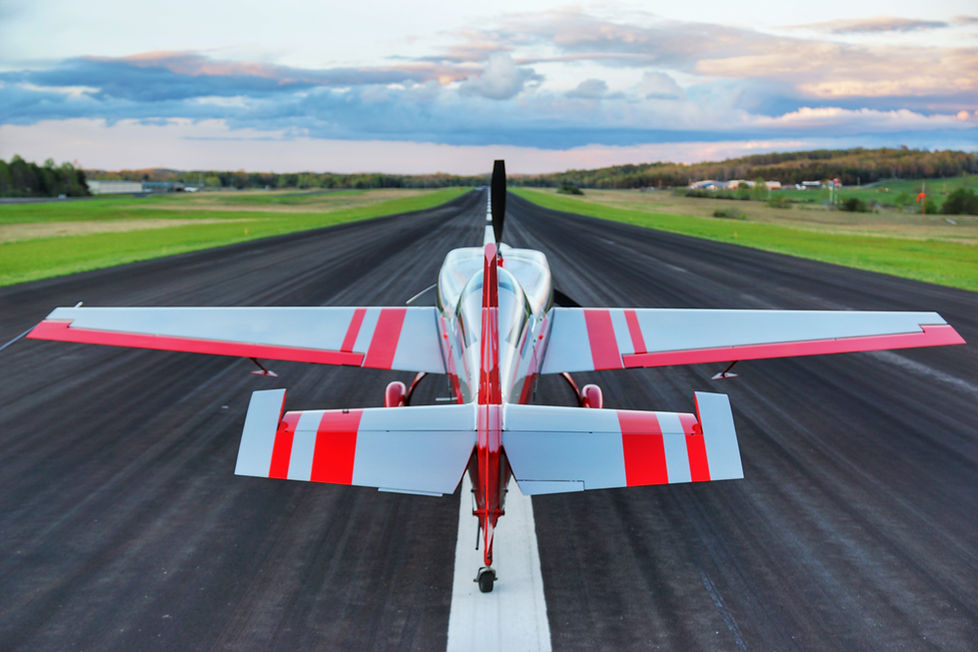

Britt Lincoln's Aerobatic Plane of choice is the Extra 330SC.

The EXTRA 330 SC is a single-seat, low-wing aerobatic monoplane with conventional taildragger landing gear, offering incredible aerobatic performance. The engines are Lycoming AEIO-580 but have been pumped and are producing about 340-350 hp. It is a carbon fiber wing assembly with an integral tank, carbon composite empennage structure, which also has a fuselage assembly, 1.7734 steel. The engine has two fuel pumps (1 engine-driven, 1 electric). Steerable, lightweight tailwheel with fiberglass landing gear spring. It is a single-seat bubble canopy with carbon pushrods and a titanium firewall.



General Characteristics of the Extra 330SC

Crew: 1
Length: 22 ft. 1 in.
Wingspan: 24.6 ft. 0 in.
Height: 8 ft. 4 in.
Wing area: 105 sq. ft.
Empty weight: 1,287 lbs.
Gross weight: 2,150 lbs.
Powerplant: 1 × Lycon engine with
AEIO-580, 340-350 hp

Propeller: Muehlbauer, MTV 9-B-C/C198-25, 3-blade

EASA certified load factor+/- 10 g

Performance

Maximum speed: 253 mph
Stall speed:
 at 1.720 lbs/780 kg (Vs)61 kts

                    at 1.918 lbs/870 kg (Vs) 64 kts

G limits: ±12
Roll rate: 420°/s

never exceed speed (Vne)220 kts

maneuvering speed (Va) (acro)158 kts
